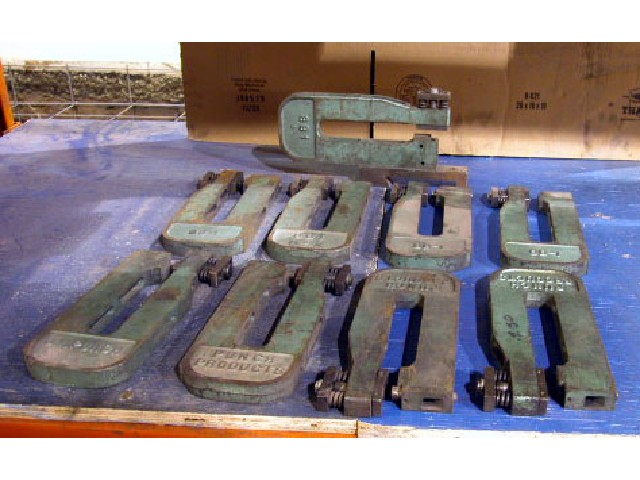

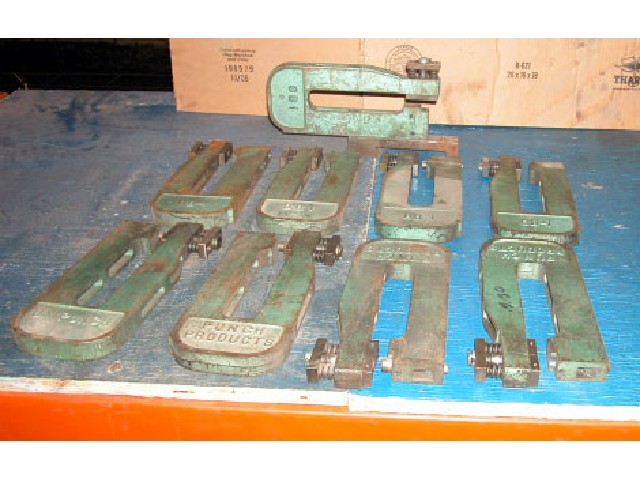

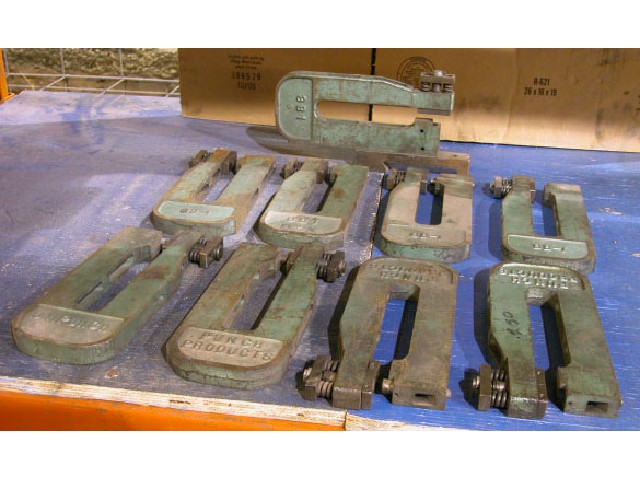

UniPunch No 8B-1/Die Sets (11 Pieces)
Condition: Good
Stock Number: 2513
Click to view larger photo
| Specification | Description |
|---|
| Throat Depth | 8" |
| Width of Die Set | 1" |
| Overall Length | 12.25" |
| Height | 5.875" |
| Quantity | 11 Pieces |
| Priced by the Each | $65.00 |
Equipped With:
Stripper Springs, Some Punch & Dies
Additional Information:
OPERATING SHUT HEIGHT:5-1/2" (139.7mm)
MIN. SHUT HEIGHT:5-5/16" (134.9mm)
UNIT OPEN HEIGHT:5-7/8" (149.2mm)
DIE HEIGHT:2-19/32" (65.9mm)
MATERIAL FEED CLEARANCE:7/32" (5.5mm)
MAX. MAT. THK (M.S.):10 GA./.134" (3.4mm)
MIN. DIE CLEARANCE:
.006" (.15mm)
MAX. PUNCH DIAMETER:.3125" (7.93mm)
MIN. PUNCH DIAMETER:.0937" (2.38mm)
MAX. SQUARE:N.A.
MIN. SHAPE DIMENSION:N.A.
MAX. MAT. THK (S.S.):1/16" (1.6mm)
Weight each Unipunch 8B-1 Die Set …. 9 lbs
