22 x 120 Acra 2200G ACH Precision Engine Lathe w/ Rapid Traverse


22" x 120" Acra 2200G ACH Precision Engine Lathe w/ Rapid Traverse

Condition: New

Stock Number: 3007

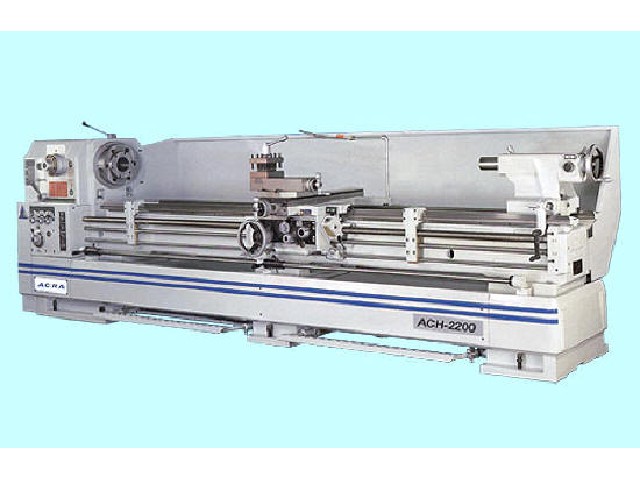

Click to view larger photo

Request A Quote On Our Stock Number: 3007 22 x 120 Acra 2200G ACH Precision Engine Lathe w/ Rapid TraverseRequest a quote on stock# 3007
SpecificationDescription
Swing Over Bedways22"
Swing Over Cross Slide13.375"
Swing In Gap31.375"
Width of Bed Way15.75"
Distance Between Centers120"
Spindle Speeds (12)13 - 1200 RPM
Spindle Bore4.0625"
Spindle NoseD1-11
Feed Range
Longitudinal0.035~0.09 IPR
Cross0.0012~0.039 IPR
Inch Threads44 KINDS 2~72 TPI
Metric Threads39KINDS 0.2~14 MM
Tailstock TaperMT No 5
Tailstock Quill Travel7"
Motor 220/440/3/60 Specify15 HP

Dimensions178": x 48" x 60"
Weight7500 lbs

Equipped With:
STANDARD EQUIPMENT:
Rapid Traverse is Standard; 15" 3 Chuck; Full Length Spash Guard; Coolant System; Steady Rest 1.625" - 10"; 4 Way Tool Holder; Removable Gap; LED Light; Chuck Guard.
