22" x 160" Acra 2200G ACH Precision Engine Lathe, w/ Rapid Traverse, 3J, 4J
Condition: New
Stock Number: 3067

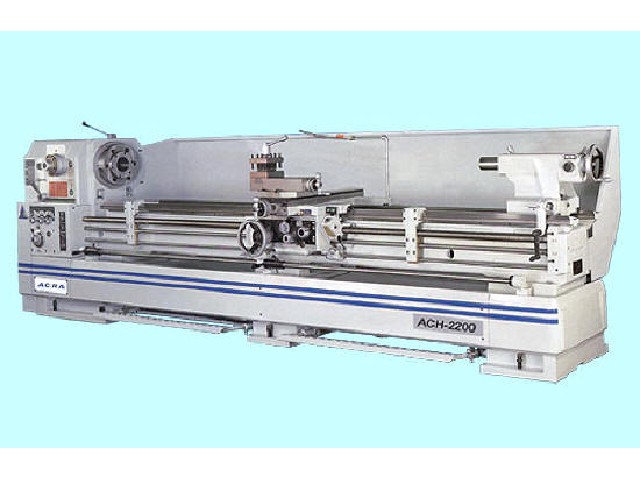

Click to view larger photo
Request a quote on stock# 3067
| Specification | Description |
|---|
| Swing Over Bedways | 22" |
| Swing Over Cross Slide | 13.375" |
| Swing In Gap | 31.375" |
| Width of Bed Way | 15.75" |
| Distance Between Centers | 160" |
| Spindle Speeds (16) | 13 - 1200 RPM |
| Spindle Bore | 4.125" |
| Spindle Nose | D1-11 |
| Feed Range | |
| Longitudinal | 0.035~0.09 IPR |
| Cross | 0.0175~0.045 IPR |
| Inch Threads | 44 KINDS 2~72 TPI |
| Metric Threads | 39KINDS 0.2~14 MM |
| Tailstock Quill Diameter | 2.375" |
| Tailstock Taper | MT No 5 |
| Tailstock Quill Travel | 7" |
| Motor 220/440/3/60 Specify | 15 HP |
| | |
| Weight | 8250 lbs |
Equipped With:
Base Price for 22" x 160" $42,000.00
Rapid Traverse; 15" 3 Chuck; Full Length Spash Guard; Coolant System; Steady Rest; Follower Rest. halogen Light.
Rapid Traverse Standard
Optional Accessories:
Taper Attachment Installed $2,450.00
2 Axis Digital Read Outs Available (Choose One)
Anilam Digital Read Out(120" Verify 160") $3,030.00
Newall Digital Read Out $4,000.00
DRO Installation $375.00
20" 4 Jaw Chuck (China) $1,000.00
20" 4 Jaw Bison Chuck (Poland) On Requet
Dorian Tool Post Set P/N 733101-SDN50DA $1,879.00 (verify)
Includes 50DA Tool Post
#1 Turning & Facing Holder
#2 Turning, Facing & Boring
#4 HD Boring Bar to 1-1/2"
#5 Morse Taper - #5 MT
#7-71C Parting Tool Holder
Terms will be 20% with order, Balance on Start Up not later than 7 days of delivery.
