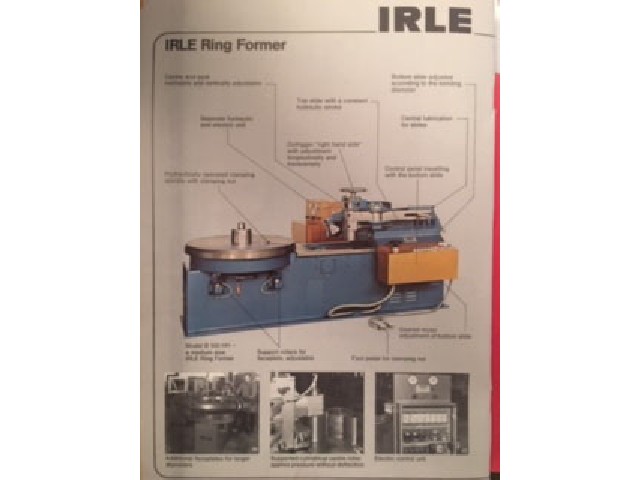

IRLE Ring Former Model B-100 HH, 3 x 3 x 3/8 to 40; 3 x 3/4 Flat on Edge to 60


IRLE Ring Former Model B-100 HH, 3" x 3" x 3/8" to 40"; 3" x 3/4" Flat on Edge to 60"

Condition: Good

Stock Number: 3232



Click to view larger photo

Request A Quote On Our Stock Number: 3232 IRLE Ring Former Model B-100 HH, 3 x 3 x 3/8 to 40; 3 x 3/4 Flat on Edge to 60Request a quote on stock# 3232
SpecificationDescription
Table, Three Rings to 96"96" Maximum Table Ring

Table Rotation Speeds2, 3, 5 RPM

Flat on Flat, to Minimum Diameter1 -3/4" x 1/2 to 8"
 2-3/8" x 5/8" to 20"
 2-3/4" x 3/4" to 40"
 3" x 3/4" to 60

Angle, Leg Out to Minimum Diameter
 1-1/2" x 1-1/2" x 3/16" to 8"
 3" x 3" x 3/8" to 40"
 3" x 3" x 5/16" to 60"

Angle, Leg In to Minimum Diameter1" x 1" x 3/16" to 8"
 2-3/8" x 2-3/8" x 1/4" to 40"
 3" x 3" x 5/16" to 60"

Squares, Solid to Minimum Diameter2" x 2" to 40"
Flats on Edge to Minimum Diameter7/8" x 4" to 40"
Channels, Leg In to Minimum Diameter3-1/2" to 40"
Channels, Leg Out to Minimum Diameter3-1/2" to 40"
Tees, Leg In to Minimum Diameter3" to 40"
Tees, Leg Out to Minimum Diameter3-1/2" to 40"

Preliminary Catalog Specifications & OthersConfirm for Application
Machine Photos on Request

Equipped With:
3 Table Sizes: Three Rings to 96" Maximum
