21 x 80 Acra 2100C Precision Engine Lathe


21" x 80" Acra 2100C Precision Engine Lathe

Age: New

Condition: New

Stock Number: 2199

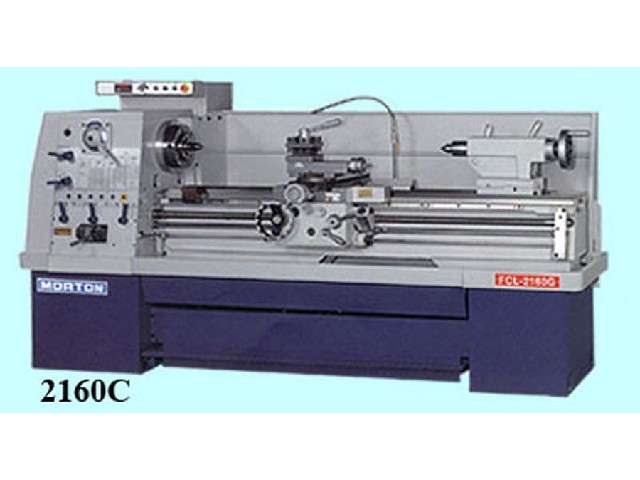

Click to view larger photo

Request A Quote On Our Stock Number: 2199 21 x 80 Acra 2100C Precision Engine LatheRequest a quote on stock# 2199
SpecificationDescription
Swing Over Bedways21"
Swing Over Cross Slide14"
Swing In Gap31"
Width of Bed Way13-9/16"
Distance Between Centers80"
Spindle Speeds (16)20 - 1600 RPM
Spindle Bore3-1/8"
Spindle NoseD1-8
Feed Range
Longitudinal0.0015~0.04 IPR
Cross0.00075~0.02 IPR
Inch Threads45KINDS 2~72 TPI
Metric Threads39KINDS 0.2~14 MM
Tailstock Quill Diameter2-5/16"
Tailstock TaperMT No 5
Tailstock Quill Travel6-1/2"
Bed Width13-9/16"
Motor 220/440/3/60 Specify12.5 HP

Weight7480 lbs

Equipped With:
12" 3 Chuck, 16" 4 jaw Chuck, Full Length Spash Guard, Coolant System, Face Plate, Steady Rest, Follower Rest, Micro Bed Stop, 4 Way Tool Holder.

Optional Accessories:

Taper Attachment $1,750.00
Taper Installation $475.00
JFK Lever Type Collet Close $995.00
Toolpost (Aloris Type) w/ Holders $750.00
Chuck Guard $250.00
2 Axis Digital Read Out
Newall Digital Read Out $3,400.00
DRO Installation $375.00



Terms: 20% with order, Balance on Start Up not later than 7 days of delivery.
